Single-sided & island benches
Wall-mounted single-sided runs and double-sided island benches with epoxy, phenolic or stainless worktops, reagent shelving and an integrated service spine. C-frame, H-frame, cabinet-supported or mobile.
Built in Canada
Our Products
Lab Furniture
Benching, cabinets and specialist tables built around the chemistry and the instruments that will sit on them — not around a standard catalogue module.
Overhead & wall cabinets
Glazed and solid-door overhead cabinets, open reagent shelving and under-bench storage, sized to the bench module so the run reads as one piece of equipment.
Built in Canada

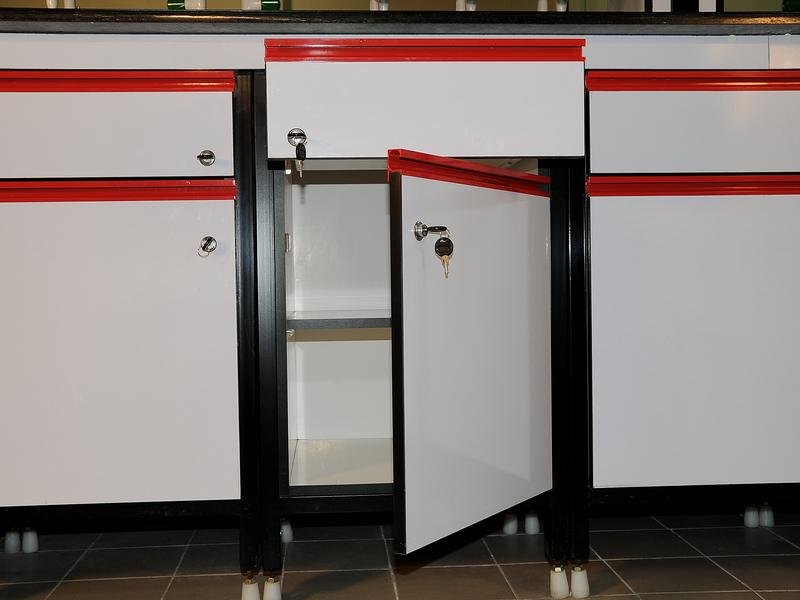

Chemical storage cabinets
Vented acid, base, flammable-liquid and solvent cabinets with self-closing doors, liquid-tight sills and segregated compartments, to NFPA 30.
Built in Canada

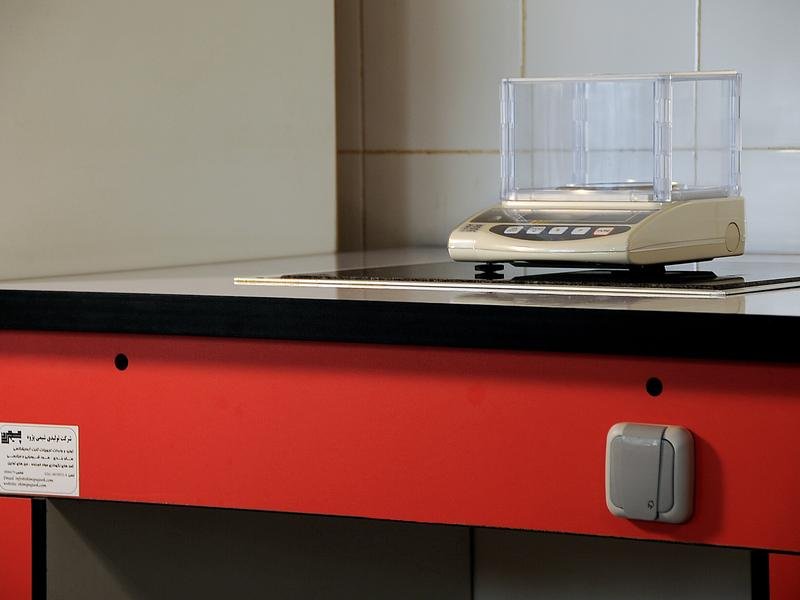

Balance tables
Isolated granite or cast slab on a decoupled frame with levelling feet and anti-vibration mounts, for analytical and micro-balances.
Built in Canada
GC & HPLC instrument tables
Heavy-frame instrument benches sized around the real stack — pump, autosampler, column oven, detector — with cable management, rear service access and vibration control.
Built in Canada
Gas cylinder enclosures
Ventilated cylinder cabinets and restraint systems for compressed and flammable gas, with regulator panels and monitored exhaust.
Built in Canada
Equipment & document cabinets
Tall equipment cabinets, instrument storage and lockable document cabinets, finished to match the laboratory casework.
Built in Canada
Sinks & service fixtures
Epoxy resin, polypropylene and stainless sinks, cup sinks and drip cups, with colour-coded water, gas, vacuum and air fittings on removable service indexes.
Imported · Scientora-specified
Mobile & flexible benching
Bench modules on locking castors with quick-disconnect services, for laboratories whose work changes faster than their building does.
Built in Canada
Specification
Standard sizes we quote from
| Item | Range / options | Notes |
|---|---|---|
| Bench depth | 600 / 750 / 900 mm (single-sided); 1200 / 1500 mm (island) | Island depth chosen from reach across the bench, not from the room |
| Bench height | 900 mm standard; 750 mm seated; 850 mm accessible | Accessible height with knee space to the applicable building code |
| Module width | 600 – 1800 mm in 150 mm increments | Non-standard widths made to order at no premium |
| Worktop | Epoxy resin 25 mm · phenolic 19 mm · 304 stainless · chemical-resistant laminate | Matched to the chemistry, not to the budget line |
| Cabinet body | Cold-rolled steel, epoxy powder coat · MDF/plywood with laminate | Steel where reagents and washdown are constant |
| Load rating | Uniformly distributed load to SEFA 8 criteria | Instrument tables rated separately for point load |
| Balance slab | Granite or cast composite, isolated on anti-vibration mounts | Slab mass specified from the balance readability |
How we specify a bench run
We start from the process, not the floor plan: what is handled on that bench, in what volume, with what reagents, by how many people at once. That decides worktop material, service positions, storage split and whether the run needs to be reconfigurable. Only then do we lay it into the room.
Every run is issued as a shop drawing showing module widths, service positions, worktop joints and anchor points, for your approval before anything is cut. Nothing goes into fabrication on a verbal.
Request a quote
Send us the drawings. We'll send back a layout and a number.
Attach a floor plan, an equipment list, a mechanical drawing — or even a phone photo of the room as it stands today. Within five business days you'll have a marked-up layout and a budget price. No charge, no obligation.
